Electronic schemes
-
IRDA for PC
It allows the use of IRDA port on PC equipped with a motherboard (Asus, MSI,...)
that has a special IRDA connector.
I have adapted it
to be used with MSI KT 3 Ultra 2 motherboards, for another motherboard,
you hust have to know the connector pins...
Download irda_pc.pdf (8 kO)
Notes & datasheets (Agilent) :
IRDA physical layer for agillent (48 kO)
HSDL-1001 (136 kO)
HSDL-7001 (132 kO)
-
DAC for DSP TMS 320 F240
This is an Analog to Digital Convereter (DAC) 12 bits 4 DAC linked with just three wires
via a SPI serial interface of the TMS 320 F240.
I have adapted it to an IMMC 240 kit from Technosoft
but it is suitable for any F240 board.
Photo of IMMC
Download TLV_DSP (10 kO)
Part of an assembly routine (DSP F240) that send one after one on the SPI port the variables of the programm in order to display them on an oscillocope for exemple.
Notes & datasheets (Texas Instruments) :
TLV 5614 (369 kO)
TMS320F/C24x DSP Controllers Reference Guide CPU and Instruction Set (1350 kO)
TMS320F/C240 DSP Controllers Reference Guide Peripheral Library and Specific Devices (1811 kO)
-

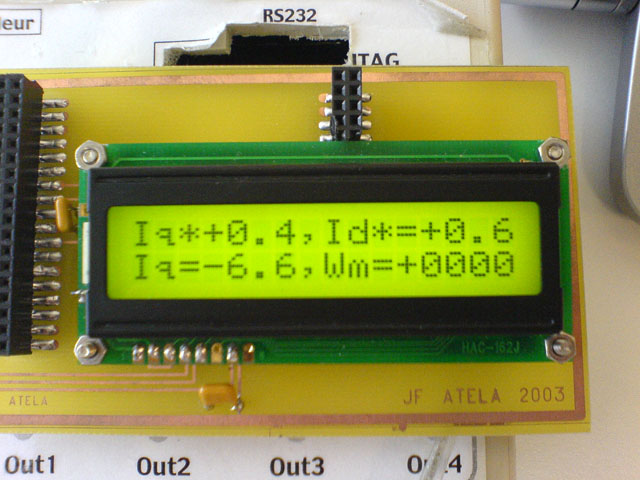

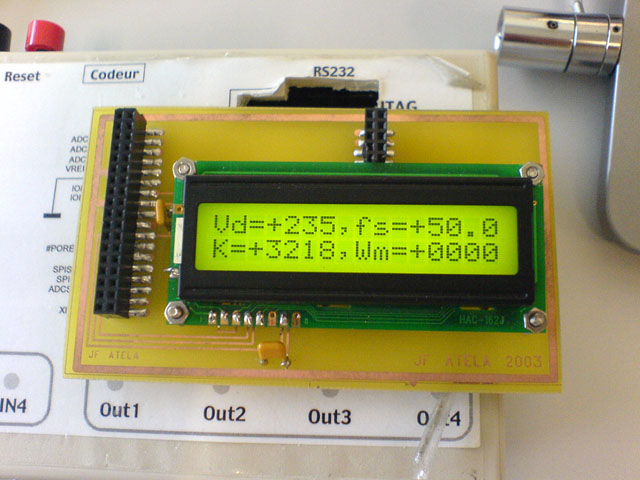

NEW : LCD screen for DSP TMS 320 F240
This is how to connect an LCD "2x16 chars" screen to a F24X DSP device thanks to a serial interface : SPI. The DAC and LCD screen are connected to the same SPI and are addressed successively. The TMS 320 F240 is mounted on an IMMC 240 kit from Technosoft
but it is suitable for any F240 board.
Scheme (9 kO)
Notes & datasheets (Selectronic) :
lcdselectronic.pdf (1450 kO)
-
NEW : Ampli to connect MP3 or CD players to car speakers
This is a very simple Amplificator base on TDA 1554.
It has a Jack 3.5 stereo line input, powered by 12 V car battery and can drive 4 or 8 Ohms 2 x 22 W speakers.
Scheme (16 kO)
Notes & datasheets (Philips) :
TDA1554Q_CNV_2.pdf (93 kO)
Note : The author decline any responsability on the use of the mentionned schemes or program code.
